NEW PEUGEOT RIFTER "HANDY ECO" - Air

TECHNICAL DATA SHEET | GALLERY | REQUEST INFO | SHARE

The low floor on the new Peugeot Rifter is integrated in the rear of the vehicle. The short wheelbase version can accommodate 1 person in a wheelchair while maintaining 4 comfortable seats. In the long wheelbase version, the total number of passengers on board rises to 6: 5 original seats + 1 person in a wheelchair



The low floor on the new Peugeot Rifter is integrated in the rear of the vehicle. The short wheelbase version can accommodate 1 person in a wheelchair while maintaining 4 comfortable seats.  In the long wheelbase version, the total number of passengers on board rises to 6: 5 original seats + 1 person in a wheelchair



Access to the low floor is made easier by a folding light servo-assisted aluminium ramp, which is also available in a floor-mounted fold-out version covered with non-slip material. The inclination of the low floor has been designed to enhance containment of wheelchair passengers and improve their view, as well as facilitate interaction with other passengers on the seats.



With Handy Eco the vehicle can be set-up according to the specific needs of the customer: you can choose to leave the rear compartment completely free for the wheelchair or decide to purchase 1 or 2 rear removable seats or wall-mounted swivel seats. In any case, all wheelchair models can be accommodated, both manual and electronic (short wheelbase version).

In the long wheelbase version, the original seats of the second row are preserved, thus being able to accommodate a higher number of passengers on board. This is the ideal solution for large families, associations or charterers. On request, the AIR version (optional) is also available, with air suspensions that allow the vehicle to lower more for more comfort in getting in and out of the vehicle.

Safety on board is guaranteed by the vehicle standard equipment and by the wheelchair containment and passenger restraint systems, which comply with ISO 10542 standards.

With its diverse equipment solutions, additional internal lighting and various accessories and customizations, this multi-purpose vehicle can match every single need.



LOW FLOOR INTERNAL DIMENSIONS:

Length: 1370 mm (1270 mm on long wheelbase version)

Width: 810 mm

Entry height: 1410 mm

Interior height: 1450 mm

NEW OPEL COMBO LIFE “HANDY ECO” - Air

TECHNICAL DATA SHEET | GALLERY | REQUEST INFO | SHARE

The low floor on the new Opel Combo Life is integrated in the rear of the vehicle. The short wheelbase version can accommodate 1 person in a wheelchair while maintaining 4 comfortable seats.  In the long wheelbase version, the total number of passengers on board rises to 6: 5 original seats + 1 person in a wheelchair



Access to the low floor is facilitated by a folding light servo-assisted aluminium ramp, which is also available in a floor-mounted folding version covered with non-slip material. The inclination of the low floor has been designed to enhance containment of wheelchair passengers wheelchair and improve their view, as well as facilitate interaction with other passengers.





With Handy Eco the vehicle can be set-up according to the specific needs of the customer: you can choose to leave the rear compartment completely free for the wheelchair or decide to purchase o1 or 2 rear removable seats or wall-mounted swivel seats. In any case, all wheelchair models can be accommodated, both manual and powered (short wheelbase version).

In the long wheelbase version, the original seats of the second row are preserved, thus being able to accommodate a higher number of passengers on board. This is the ideal solution for large families, associations or charterers. On request, the AIR version (optional) is also available, with air suspensions that allow the vehicle to lower more to get in and out of the vehicle.

Safety on board is guaranteed by the vehicle standard equipment and by the wheelchair containment and passenger restraint systems, which comply with ISO 10542 standards.

With its diverse equipment solutions, additional internal lighting and various accessories and customizations, this multi-purpose vehicle can match every single need.



LOW FLOOR INTERNAL DIMENSIONS:

Length: 1370 mm (1270 mm on long wheelbase version)

Width: 810 mm

Entry height: 1410 mm

Interior height: 1450 mm

FORD TOURNEO CONNECT FREEDOM 7 SEATS

TECHNICAL DATA SHEET | GALLERY | REQUEST INFO | SHARE

The low floor built on the Ford Connect 7 seats is integrated in the rear of the vehicle and has enough room to accommodate 1 wheelchair and its passenger, maintaining 5 comfortable passenger seats. Access to the lowered floor is provided by a servo-assisted aluminium ramp covered with a non-slip coating. The ramp has a system of rockers making it collapsible.
The spacious interior can accommodate 1 large-sized manual or electric wheelchair. In addition, the folding wall-mounted seats (optional) in the third row make it possible to comfortably transport 7 passengers, when the wheelchair and its passenger are not being transported. On-board safety is ensured by the vehicle equipment supplied as standard, and by the  ISO 10542 compliant wheelchair containment and passenger restraint systems.

LOW FLOOR INTERNAL DIMENSIONS:
Length: 1250 mm
Width: 770 mm
Entry height: 1400 mm
Interior height: 1430 mm

PEUGEOT PARTNER TEPEE "HANDY ECO" - Air

VIDEO | GALLERY | REQUEST INFO | SHARE

The new low floor built on the Peugeot Partner Tepee is integrated in the rear of the vehicle and has room to accommodate 1 wheelchair passenger, maintaining 4 comfortable passenger seats. Depending on the original configuration of the vehicle, specifically the rear seats, the 5 seats can be maintained in the absence of the wheelchair. Access to the lowered floor is facilitated by a servo-assisted, folding ramp made of lightweight, aluminium. A collapsible version, with a non-slip coating, is also available. The gradient of the lowered floor has been designed to enhance wheelchair passenger containment, improve their view as well as facilitate interaction with other passengers. The original, reclining and removable rear seats ensure enough space for a manual or electric. On request, the AIR version (optional) is also available (optional), with a pneumatic suspension system to lower the floor even more when getting into/out of the vehicle. On-board safety is ensured by the vehicle equipment supplied as standard, and by the ISO 10542 compliant wheelchair containment and passenger restraint systems.

LOW FLOOR INTERNAL DIMENSIONS:

Length: >1320 mm

Width: 70 mm

Entry height: 1430 mm

Interior height: 1460 mm

NEW FORD TURNEO CUSTOM “INDIPENDENCE”

TECHNICAL DATA SHEET | VIDEO | GALLERY | REQUEST INFO | SHARE

The low floor built on the Ford Tourneo Custom is integrated in the rear compartment of the vehicle and accommodates 2 wheelchairs and their passengers, maintaining 6 or 7 comfortable seats.

Access to the low floor is via a servo-assisted aluminium ramp covered with anti-slip material which, thanks to its short length, does not affect the rear view.

The low floor has been designed to increase internal height for wheelchair passengers, improve their view and facilitate interaction during the journey. Thanks to the generous dimensions of the vehicle, there is more than enough room to accommodate 2 large manual or powered wheelchairs. In addition, thanks to the wall-mounted folding seats, in case of absence of the second wheelchair and its passenger, the vehicle can carry up to 8 people.

Safety on board is guaranteed by the standard equipment of the vehicle and by the restraint systems of the wheelchair and its passengers, which comply with ISO 10542 standards.

With its wide range of fitting solutions, the integrated winch for wheelchair towing, various accessories and customizations this multi-purpose vehicle can meet the needs of associations, public assistance, taxi drivers and individuals.

LOW FLOOR INTERNAL DIMENSIONS:

Length: 2650 mm

Width: 770 mm

Entry height: 1570 mm

Interior height: 1640 mm

CITROEN BERLINGO MULTISPACE "HANDY ECO" - Air

GALLERY | REQUEST INFO | SHARE

The new low floor built on the Citroen Berlingo Multispace is integrated in the rear of the vehicle and has room to accommodate 1 wheelchair passenger, maintaining 4 comfortable passenger seats. Depending on the original configuration of the vehicle, specifically the rear seats, the 5 seats can be maintained in the absence of the wheelchair. Access to the lowered floor is facilitated by a servo-assisted, folding ramp made of lightweight, aluminium. A collapsible version, with a non-slip coating, is also available. The gradient of the lowered floor has been designed to enhance wheelchair passenger containment, improve their view as well as facilitate interaction with other passengers. The original, reclining and removable rear seats ensure enough space for a manual or powered wheelchair. On request, the AIR version (optional) is also available with a pneumatic suspension system to lower the floor even more when getting into/out of the vehicle. On-board safety is ensured by the vehicle equipment supplied as standard, and by the ISO 10542 compliant wheelchair containment and passenger restraint systems.

LOW FLOOR INTERNAL DIMENSIONS:

Length: >1320 mm

Width: 70 mm

Entry height: 1430 mm

Interior height: 1460 mm

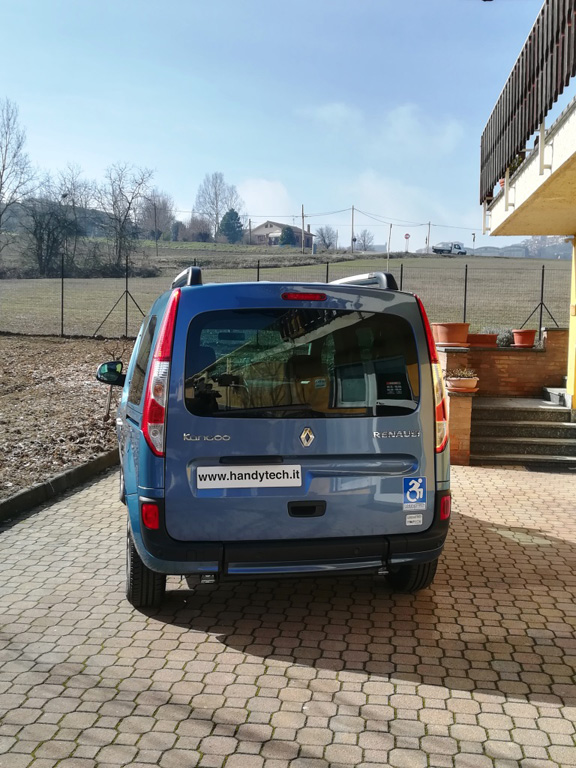

RENAULT KANGOO AND WIDE KANGOO "HANDY ECO"

TECHNICAL DATA SHEET | GALLERY | REQUEST INFO | SHARE

The low floor built on the two Renault Kangoo versions, standard and long wheelbase, is integrated in the rear of the vehicle and has room to accommodate 1 passenger seated in his/her wheelchair, maintaining 4 or 5 comfortable passenger seats. In the standard version (short wheelbase), the vehicle has 4 passenger seats + 1 wheelchair position. The seat dimensions leave a space of 440 mm for the wheelchair to ensure passenger comfort. The Grand Kangoo version (long wheelbase), features 5 passenger seats, 2 front and 3 rear, plus 1 wheelchair position located behind the rear bench seats. Access to the lowered floor is facilitated by a servo-assisted, folding ramp made of lightweight, aluminium. A collapsible version, covered with a non-slip coating, is also available. On-board safety is ensured by the vehicle equipment supplied as standard, and by the ISO 10542 compliant wheelchair containment and passenger restraint systems.

LOW FLOOR INTERNAL DIMENSIONS:
Length: 1260 mm (1240 mm on Grand Kangoo)
Width: 800 mm
Entry height: 1410 mm
Interior height: 1460 mm
